Automotive Manufacturing Ducting Solutions
The automotive manufacturing industry operates in a complex environment where air quality management is critical to both worker safety and product quality. Automotive facilities face unique challenges including welding fume extraction, paint booth ventilation, machining coolant mist control, and general facility ventilation.
These operations generate multiple types of airborne contaminants including metallic particles, volatile organic compounds (VOCs), welding fumes, and combustible dust from composite materials.
Automotive plants typically operate 24/7 with high-volume production requirements, making ducting system reliability and minimal downtime essential. The industry is also faced with pressure to meet stringent environmental regulations while also maintaining cost-effective operations.
Workers are exposed to various health hazards including hexavalent chromium from welding, isocyanates from paint processes, and metallic dusts from machining operations.
Specific Air Quality Requirements & Regulations
Automotive manufacturing facilities must comply with multiple regulatory frameworks. OSHA standards 29 CFR 1910.1000 establish permissible exposure limits (PELs) for airborne contaminants, while 29 CFR 1910.252 specifically addresses welding ventilation requirements. The EPA's National Emission Standards for Hazardous Air Pollutants (NESHAP) regulate chromium emissions from electroplating and anodizing operations.
Paint booths using flammable or combustible spray applications are required to adhere to NFPA 33 standards, which specify explosion-proof electrical installations and appropriate ventilation requirements. Welding operations generating hexavalent chromium require local exhaust ventilation systems capable of maintaining capture velocities of 100-150 feet per minute at the source.
Temperature considerations vary significantly across automotive operations. Welding areas may experience ambient temperatures exceeding 100°F, while paint curing ovens operate at 300-400°F, requiring high-temperature rated ductwork. Machining operations with coolant mist typically operate at ambient temperatures but require oil-resistant ductwork materials.
Construction Process & System Design Considerations
Automotive manufacturing ducting systems require careful integration with existing production equipment and facility infrastructure. The construction process begins with detailed facility surveys to identify all emission sources and determine optimal capture point locations. System design must account for the complex three-dimensional nature of automotive assembly lines, often requiring custom ductwork routing above and around production equipment.

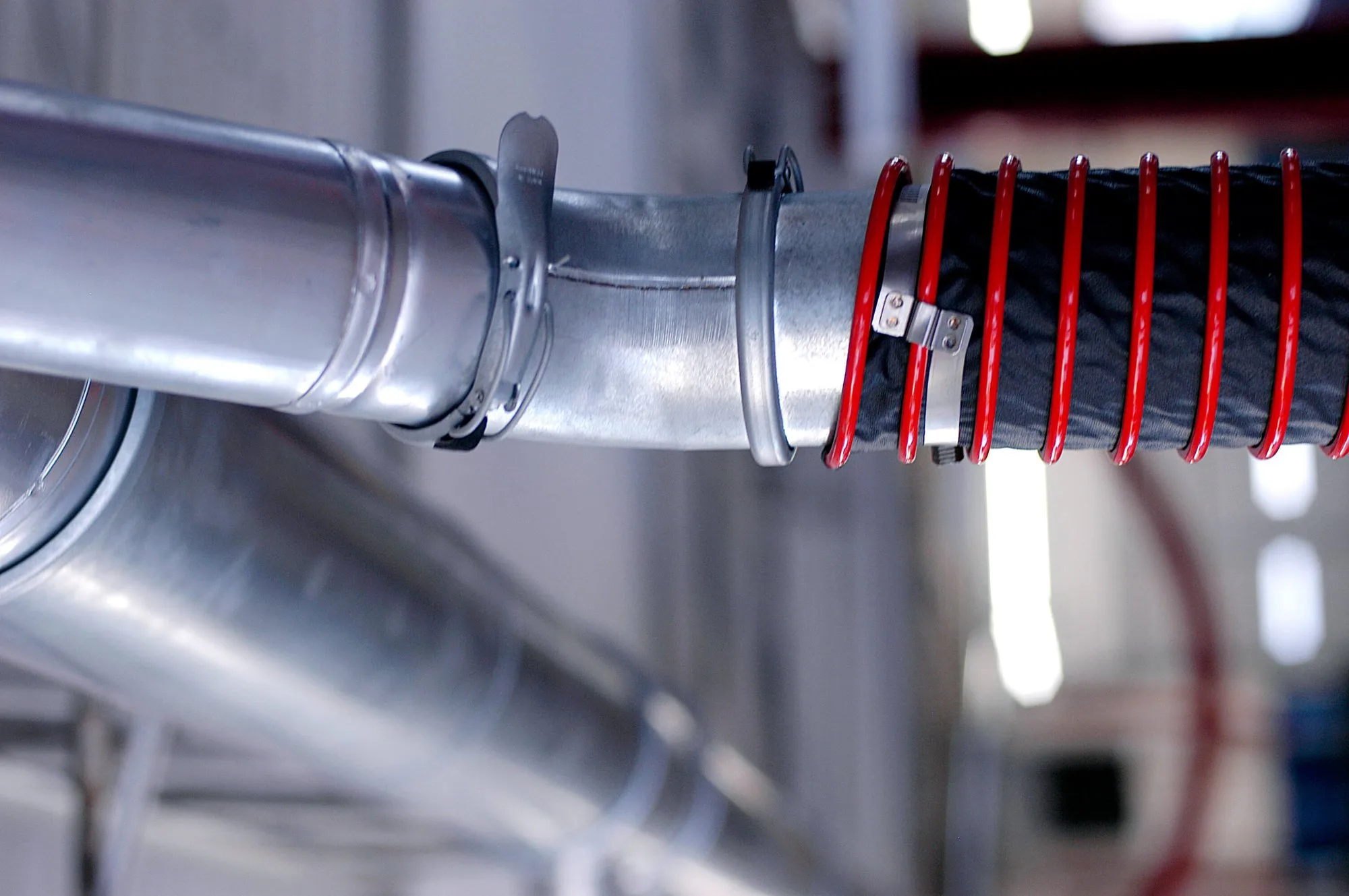

Main trunk lines typically utilize large-diameter spiral ductwork to handle high CFM requirements, while branch connections to individual workstations use smaller diameter flexible or rigid ductwork. Welding fume capture systems require specialized hoods and arms positioned close to the welding arc, connected via flexible ducting to maintain operator mobility.
Paint booth ventilation systems demand precise airflow balance to maintain proper booth pressurization while ensuring adequate capture velocity. This requires sophisticated damper systems and controls to maintain consistent performance across varying production schedules. Installation must coordinate with electrical systems, compressed air lines, and overhead crane operations.
Technical Specifications & Performance Requirements
Automotive manufacturing ducting systems are designed to handle high air volumes, typically ranging from 50,000 to over 500,000 CFM for large facilities. Welding fume extraction systems often require 1,000 to 3,000 CFM per station, depending on the type of welding and hood configuration. Paint booth ventilation can demand 100,000 CFM or more, particularly in full downdraft or conveyorized systems.
Material selection is critical due to the corrosive nature of many automotive processes. Stainless steel (316L) is preferred for applications involving chromium-containing fumes or acidic environments. Galvanized steel is suitable for general ventilation, while aluminum may be used for lighter-duty applications. Paint booth ductwork requires spark-resistant materials and grounding to prevent static buildup.
Ductwork must withstand negative pressures up to 20 inches of water column, particularly in systems with high-efficiency particulate air (HEPA) filtration. Vibration resistance is essential due to the dynamic nature of automotive production equipment. Thermal expansion joints are required in high-temperature applications, and access panels must be provided for maintenance and inspection.
How Industrial Ducting Systems Delivers Solutions
Industrial Ducting Systems specializes in providing comprehensive ducting solutions tailored to the demanding requirements of automotive manufacturing. Our preconstruction services begin with detailed 2D CAD design that integrates seamlessly with your facility's architectural and MEP plans. We understand the critical timing requirements of automotive production and provide accurate quantity take-offs to ensure all materials are delivered precisely when needed.
Our system design expertise addresses the unique challenges of automotive environments, from high-temperature paint curing operations to precision welding fume capture. We utilize advanced materials including stainless steel, galvanized steel, and specialized coatings to ensure long-term durability in corrosive environments.
Our logistics coordination services ensure that ductwork delivery aligns with your production schedule, minimizing disruption to ongoing operations. We provide modular ducting systems that allow for easy reconfiguration as production lines change, helping you maintain operational flexibility while meeting strict air quality requirements.
